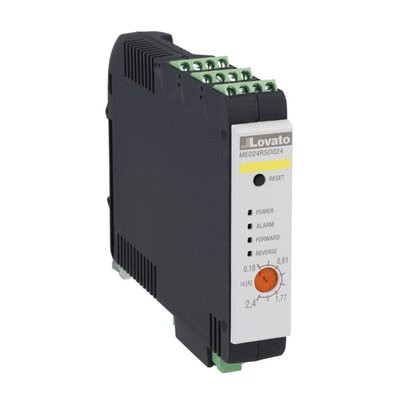

ME024RSD024

0.75KW 2.4A EL R/START STO 24VDC

ME024RSD024

Out of stock

ME series electronic motor starters

The ME series starters are compact (only 22.5 mm wide) and built for applications with high start-stop cycles, featuring integrated electronic thermal protection. Ideal for motors up to 3 kW at voltages up to 500 VAC, they combine hybrid semiconductor technology with the reliability of electromechanical components to deliver long life and low energy consumption. Direct-on-line and reversing starters are available, with built-in Safe Torque Off (STO) for emergency stopping, compliant with SIL3 and PL e standards.

These starters offer flexible functionality including adjustable motor current settings, multiple digital inputs/outputs, and diagnostics LEDs. Advanced capabilities such as emergency override mode, jog functions, pump cleaning cycles, and scheduled starts via an onboard RTC make them suitable for conveyors, automatic doors, packaging systems, and other industrial machinery requiring robust, intelligent motor control.

Excl. GST

ME series Electronic Motor Starters

ME... series electronic motor starters are extremely compact (22.5 mm width) ideal for applications requiring a very high number of starts with electronic thermal protection incorporated. Employing hybrid technology, combining advantages of extremely long working life of a wear-free
semiconductor device with the robustness of a mechanical relay and low consumption. Direct-on-line and Reversing starters for motors up to 3 kW with rated voltage up to 500VAC. Electronic motor thermal protection incorporated in all models and are also available with built-in STO
(Safe Torque Off) emergency stop function.


Typical applications:
• Conveyors, packaging machines, automatic doors, escalators, sorting equipment and access control systems
Functionality:
• Direct-on-line and Reversing starters
• Rated motor current 2.4 or 7A (AC3, AC53)
• Operational voltage Ue ≤500 VAC
• Auxiliary and control supply voltage 24 VDC
• Potentiometer for the adjustment of the rated motor current Ie
• Integrated electronic motor thermal protection with tripping class 10A
• Versions with STO (Safe Torque Off) emergency stop with Safety Integrity Level SIL3
(IEC/EN 61508) and Performance Level “PL e” (ISO 13489)


General benefits
• 4 digital inputs / 3 integrated digital outputs
• 4 status LEDs on front for diagnostics
• Motor thermal protection against overload / phase loss / phase imbalance
Advanced features:
• Various motor starting modes
• Emergency mode: Running of the motor ignoring alarms
• Power Through function: allow starting with a damaged thyristor (2-phase control)
• Scheduled start: timer & clock modes, based on ADXT RTC
• Event log / Jog function / - Pump clean cyc
