VFD370FP4EA-52

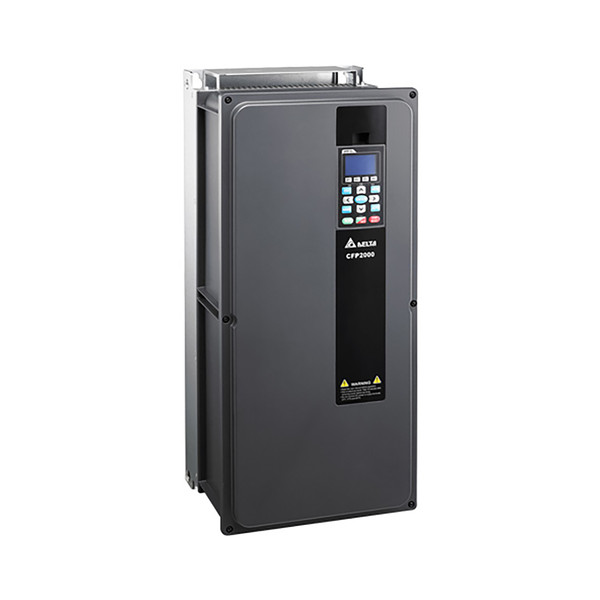

Variable Speed Drive CFP2000 37kW 415V 3ph/3ph EMI Filter IP55 Frame C-1

VFD370FP4EA-52

In stock

CFP2000 Series IP55 Drives for Fans and Pumps

The Delta CFP2000 Series is purpose-built for fan and pump applications requiring rugged protection and reliable performance. Housed in a robust IP55-rated enclosure, it offers superior resistance to dust and water, making it ideal for challenging industrial and outdoor environments. The drive includes built-in EMI filtering and a DC choke to meet EN61800-3 and EN61000-3-12 standards, ensuring minimal electrical interference and optimized harmonic control.

Engineered for efficiency and ease of use, the CFP2000 comes equipped with dual PID controllers, built-in Safe Torque Off (STO) certified to SIL2, and an enhanced 3C3-compliant PCB coating for operation in corrosive or humid conditions. With simplified setup, strong environmental protection, and integrated safety features, the CFP2000 is a reliable solution for high-performance HVAC, water, and industrial pumping systems.

$4,649.03
Excl. GST (Excl. GST)
Adding to cart… The item has been added

CP2000 series - Fan and Pump Purpose Drives

The Delta CP2000 Series is an energy-efficient AC motor drive designed specifically for HVAC systems, pump control, and fan applications. Engineered with special HVAC parameters and advanced PID control functions, the CP2000 delivers precise motor control, optimised energy consumption, and stable performance in environments requiring frequent torque changes and constant output operation.
With built-in multi-segment V/F control, soft-start capability, and intelligent process management, the CP2000 offers a reliable and efficient solution.


Key Features
• Optimised for HVAC and Pump Applications — Special HVAC parameters and multi-segment V/F control ensure smooth operation and energy efficiency
• Advanced PID Control — Enables precise process regulation for stable pressure, temperature, and flow control
• Built-in PLC Functionality — Offers 10k programming steps with an integrated real-time clock and calendar for scheduling and automation
• Seamless BMS Integration — Equipped with RS-485 (Modbus) and BACnet MS/TP communications, with optional extension cards for added protocols
• Multi-Pump Control — Controls up to 8 motors with fixed amount and fixed time circulation management, ideal for water supply and treatment systems
• Flying Start & Auto-Restart — Ensures smooth recovery after momentary power losses, making it suitable for critical fan and pump operations
• Dual-Rating Design — Supports both normal-duty and heavy-duty applications for greater flexibility
• Durable & Reliable Design — Enhanced PCB coatings (IEC 60721-3-3 Class 3C2) ensure protection in harsh industrial environments
• External EMI Filters — Recommended for drives above 37 kW to meet electromagnetic compatibility requirements

Delta CFP2000 AC Drive for Pumps, Fans and HVAC Systems

The Delta CFP2000 Series Variable Frequency Drive is a variable speed drive designed specifically for HVAC systems, pumps, fans, and water treatment applications. Built with a rugged IP55-rated enclosure, the drive provides strong protection against dust and water, making it suitable for installation in demanding industrial environments without the need for additional protective cabinets.



The CFP2000 includes a built-in EMC filter and DC choke, helping to improve power quality and reduce harmonics while saving space in control panels. Its application-based parameter groups simplify setup, allowing users to quickly configure the drive for pump and fan applications and reduce commissioning time.



Additional features include support for both IM and PM motors, an integrated real-time clock, built-in PLC functionality, and optional expansion cards for added flexibility.

Designed to deliver reliable motor control, improved efficiency, and simplified installation, the CFP2000 is a smart solution for modern HVAC and pump systems.



!
