C2000+ series - High performance vector control drive
The Delta C2000+ Series is an advanced range of AC motor drives engineered for precise speed, torque, and position control. Designed to support both synchronous and asynchronous motors, the C2000+ offers sensor and sensorless control options, making it ideal for a wide variety of industrial automation applications.
Key Features & Benefits
• Versatile Motor Control — Suitable for both synchronous and asynchronous motors, supporting sensor and sensorless control
• High Overload Capacity — Handles up to 150% of rated output current for 1 minute and 180% for 3 seconds under heavy-duty conditions
• Integrated Safety Functions — Safe Torque Off (STO) with SIL2 / PLd compliance for enhanced operator and equipment protection
• Dual Rating Design — Flexible operation with selectable heavy-duty and super-heavy-duty modes
• Built-in PLC Functionality — Supports up to 10k steps for seamless control and reduced system costs
• Modular Expansion Options — Accepts various PG (encoder), I/O extension, relay extension, and communication cards for customised integration
• Enhanced Connectivity — Built-in Modbus and CANopen (up to 30kW) with optional cards for additional industrial protocols
• Reliable in Harsh Environments — Features IEC 60721-3-3 Class 3C3 PCB coatings for superior resistance to dust, humidity, and corrosion
• Compact & Efficient Design — For drives exceeding 30kW, external EMI filters are available for optimal performance

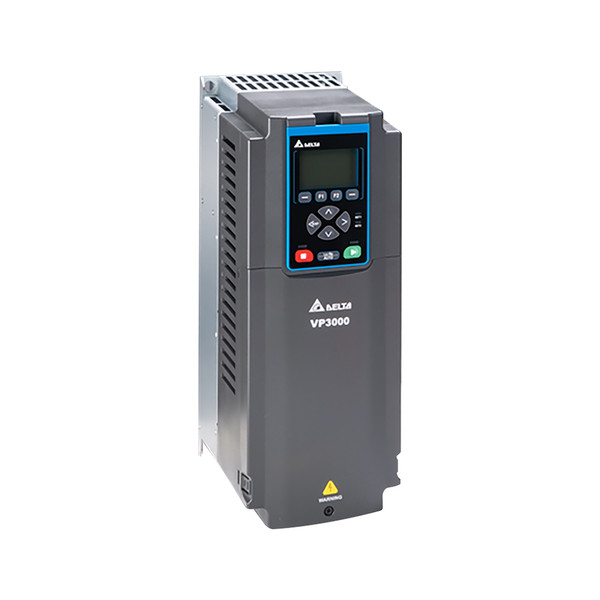

VP3000 series - Open-loop variable-torque standard drive
The Delta VP3000 Series is an advanced variable-torque drive designed to deliver high efficiency, predictive maintenance, and seamless integration for modern industrial and building automation systems. Featuring a compact design, lower harmonics, and a reduced carbon footprint, the VP3000 offers a reliable and energy-efficient solution for a wide range of applications.
Key Features & Benefits
• Advanced Energy Efficiency — Supports IM, PM, and high-efficiency SynRM motor control modes for reduced energy consumption
• Predictive Maintenance (PdM) — Monitors key component service life to minimise downtime and extend equipment lifespan
• Built-in BACnet Protocol — Enables easy integration with Building Management Systems for smart facility control
• Functional Safety — Equipped with Safe Torque Off (STO) certified to SIL3 standards, ensuring secure machine shutdown
• High-Speed Communication — Supports a range of industrial communication protocols for seamless system integration
• Built-in PLC Functionality — Offers 20k steps of custom programming, reducing the need for additional controllers
• Integrated EMC Filter — Fully compliant with EN61800-3 C2, C3, ensuring reliable operation in sensitive environments
• Lower Harmonics — Designed to meet EN 61000-3-12 standards, achieving harmonics as low as 35% from 22 kW
• Enhanced PCB Coating — Built to withstand harsh environments, compliant with IEC 60721-3-3 Class 3C3
• Compact & Sustainable Design — Smaller dimensions reduce cabinet space requirements and contribute to a lower carbon footprint
• USB-C Connectivity — Simplifies drive configuration, firmware updates, real-time monitoring, and system tuning
