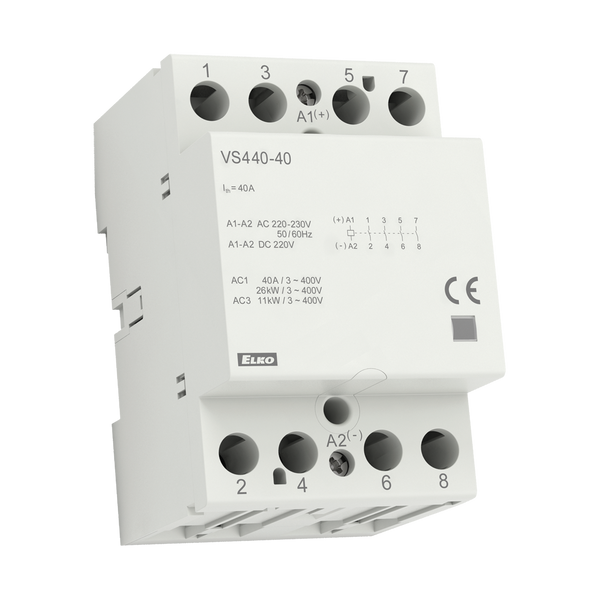

VS440-04 230V

VS440 | Installation contactor

• for switching of electric circuits, especially for resistive loads and three-phase induction motors

• number of contacts VS120: 1
  number of contacts VS220: 2
  number of contacts VS420, VS425, VS440, VS463: 4

• it is produced in the configuration of switching and breaking contacts:
  VS120: 10, 01
  VS220: 20, 11, 02
  VS420: 40, 31
  VS425: 40, 31, 22, 04
  VS440: 40, 31, 22, 04
  VS463: 40, 31, 22
• protection IP 20 - on request we deliver covers that ensure protection IP 40 for all terminals
• DIN rail or panel mounting

 Technical parameters

• Rated insulation voltage (Ui): 440V
• Rated thermal current lth (in AC): 40A
• Coil control voltage: AC / DC 24V, 110 V, 230V
• Continuous coil power consumption +/- 10%: 5VA / 5W
• Working temperature: -5 ... +55°C
• Weight: 400g
• Dimensions: 53.3 x 84 x 60mm
