DS2.5-01P-11-00A(H)
Terminal 2.5mm² 24A Push In DIN Rail Grey
DS2.5-01P-11-00A(H)
In stock

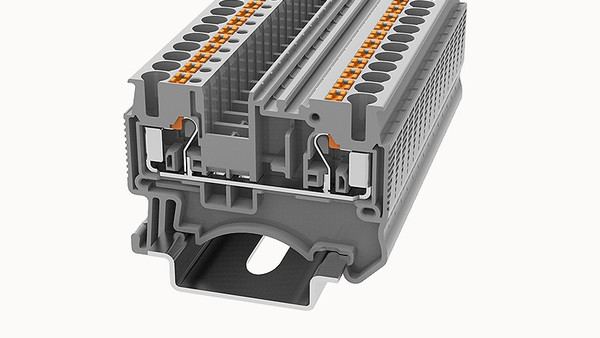

The Degson DS2.5 is a push-in DIN rail terminal block, rated at 24A with a conductor range of 0.14…2.5 mm². Wires terminate without tools — simply push the conductor directly into the terminal. An integrated release lever allows simple wire removal with a flat or Pozidriv screwdriver.
Key Features
- Tool-free push-in termination — wires push directly into terminal
- Integrated release lever — flat or star (Pozidriv) screwdriver activation, no contact with live parts
- Dual-channel bridging wells for 2–10 pole plug-in bridge connections (DFB series)
- Available in multiple colours (grey, blue, black, red) by varying order suffix
- DIN rail mount: NS35/7.5 and NS35/15
- Rated to 24A, 0.14…2.5 mm²
- Standards: IEC60947-7-1, UL 1059, TUV, CE
Applications
- Control panel and switchboard wiring
- Industrial automation and PLC cabinet wiring
- Motor control centres and distribution boards
- High-density panel wiring where tool-free installation is required
$0.55
