60066264
I60FP 50/1
60066264

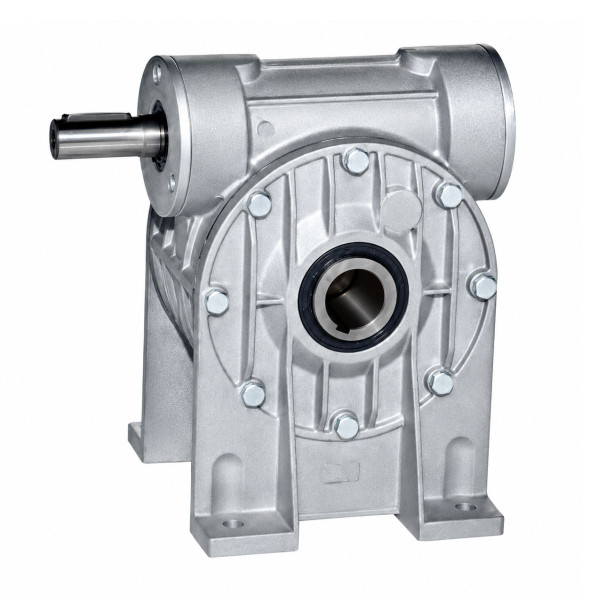

The I60FP from SITI is a mid-compact worm gear reducer built on a 60 mm centre-distance housing, supplied with a flange-mounted housing with projecting output shaft (FP variant) and suited to light-to-mid industrial duty.
- 50/1 ratio — deep reduction delivering strong torque gain and slow output for high-force conveying and positioning
- Aluminium housing with case-hardened steel worm and bronze worm wheel — self-lubricating, quiet running, low maintenance
- Input shaft configuration — couples to any motor type (IEC, NEMA, servo) via belt, chain or direct coupling
- Flange-mount housing with projecting output shaft (variant FP) — combines face-mounting with a keyed shaft output
- Self-locking output engaged at this ratio — strong load-holding when de-energised
- Made in Italy by SITI S.p.A.
$468.36
