60086715
U50 20/1
60086715

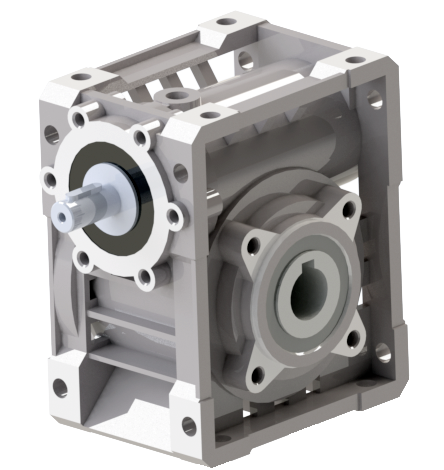

The U50 from SITI is a compact 20:1 worm reducer built on the 50 mm centre-distance worm gear frame and supplied with a standard input shaft for coupling to a separately sourced motor, belt drive or handwheel.
- Small mixers, dosing drives, rotating displays
- Compact 50 mm aluminium housing with bronze worm wheel and case-hardened steel worm for quiet, self-lubricated running
- Universal mounting: foot, flange (B5/B14) or combined — output hollow bore to suit your driven shaft
- Output speed around 70 rpm from a 4-pole 50 Hz input
- 20/1 reduction — one of the most popular ratios in the U50 frame, balancing torque gain and output speed
- Made in Italy by SITI S.p.A.
$342.70
