60088082
MU50 60/1 PAM 14/120
60088082

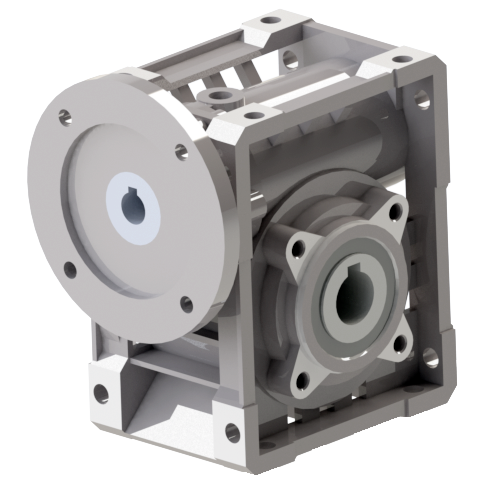

The MU50 from SITI is a compact motorised worm gearbox built on a 50 mm centre-distance housing with direct PAM motor flange, delivering reliable speed reduction for general light-to-mid industrial duty.
- 60/1 ratio — deep reduction delivering strong torque gain and slow output for conveying and positioning duty
- Input: PAM 14/120 flange — direct-mount for IEC motor via PAM 14/120 flange
- Hollow-bore output — shaft-mounts directly on the driven machine, saving installation space and cost
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Self-locking output at this ratio — strong load-holding when the motor is de-energised
- Aluminium housing keeps weight low while preserving rigidity for general light-to-mid industrial duty
- Made in Italy by SITI S.p.A.
$342.70
