60088540
MU40 10/1 PAM 14/105
60088540

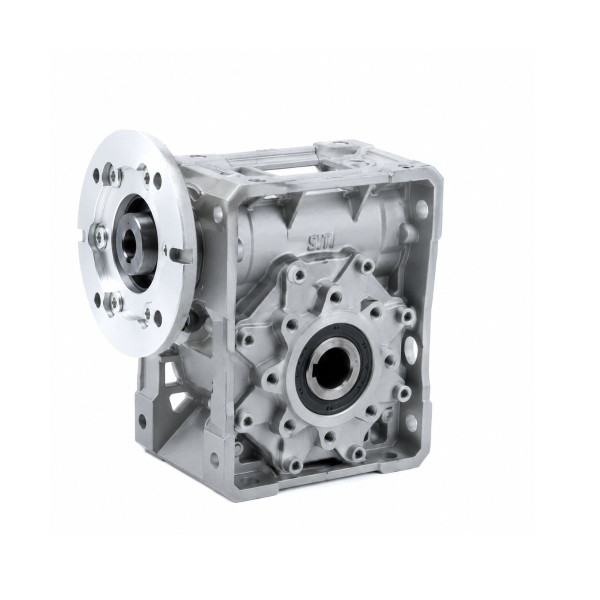

The MU40 from SITI is a compact motorised worm gearbox built on a 40 mm centre-distance housing with direct PAM motor flange, delivering reliable speed reduction for light-duty automation and small drives.
- 10/1 ratio — low reduction balancing speed retention with moderate torque gain
- Input: PAM 14/105 flange — direct-mount for IEC 71B14 (0.25–0.37 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving installation space and cost
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Low-ratio worm geometry — back-drivable under load; fit an electric brake if hold-on-stop behaviour is required
- Aluminium housing keeps weight low while preserving rigidity for light-duty automation and small drives
- Made in Italy by SITI S.p.A.
$258.16
