60089806
MU90 15/1 PAM 28/250
60089806
In stock

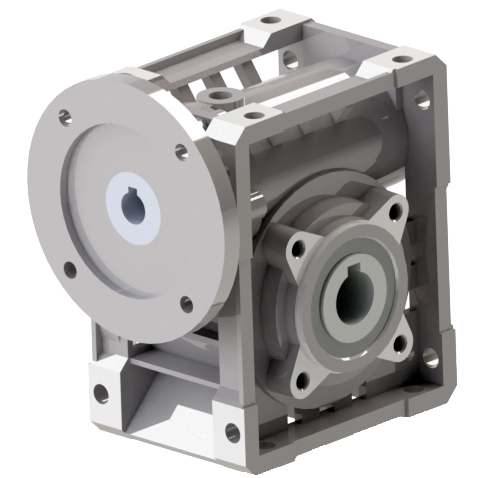

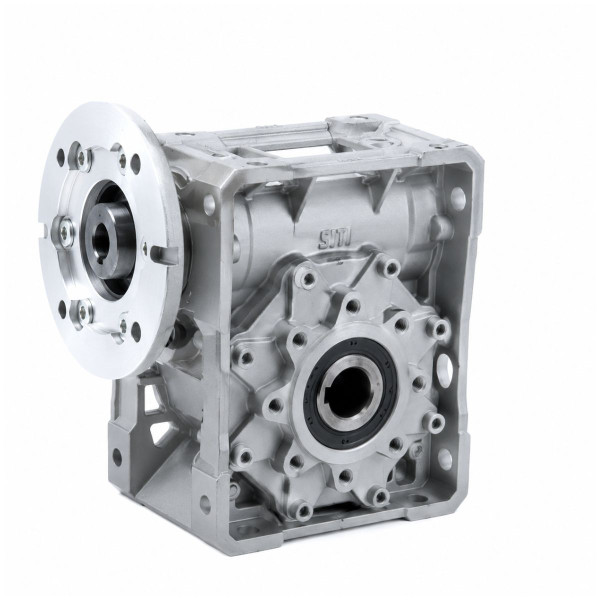

The MU90 from SITI is a larger-frame motorised worm gearbox built on a 90 mm centre-distance housing with direct PAM motor flange, delivering reliable speed reduction for heavier industrial duty.
- 15/1 ratio — low reduction balancing speed retention with moderate torque gain
- Input: PAM 28/250 flange — direct-mount for IEC 100/112B5 (3–4 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving installation space and cost
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Low-ratio worm geometry — back-drivable under load; fit an electric brake if hold-on-stop behaviour is required
- Aluminium housing keeps weight low while preserving rigidity for heavier industrial duty
- Made in Italy by SITI S.p.A.
$813.30
