60089895
MU90 100/1 PAM 19/120
60089895
In stock

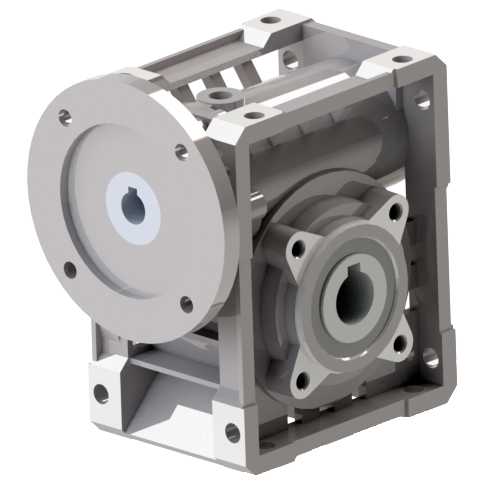

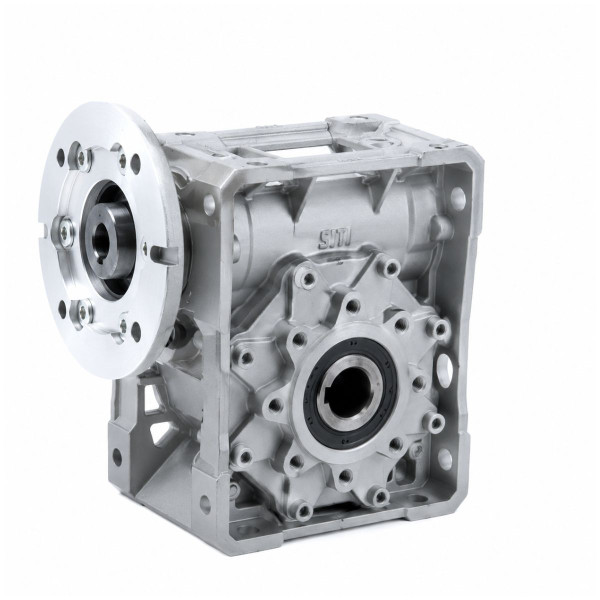

The MU90 from SITI is a larger-frame motorised worm gearbox built on a 90 mm centre-distance housing with direct PAM motor flange, delivering reliable speed reduction for heavier industrial duty.
- 100/1 ratio — very deep reduction producing very high output torque and very slow shaft speed for winch, lift and slow-turn drives
- Input: PAM 19/120 flange — direct-mount for IEC 80B14 (0.55–0.75 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving installation space and cost
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Self-locking output at this ratio — strong load-holding when the motor is de-energised
- Aluminium housing keeps weight low while preserving rigidity for heavier industrial duty
- Made in Italy by SITI S.p.A.
$813.30
