60091485
U40 80/1
60091485
In stock

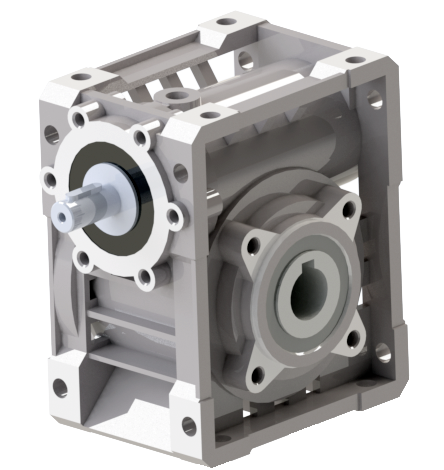

The U40 from SITI is a light-duty 80:1 worm reducer built on the 40 mm centre-distance worm gear frame and supplied with a standard input shaft for coupling to a separately sourced motor, belt drive or handwheel.
- Applications include slow rotating platforms, small hoists and indexing drives
- Compact 40 mm aluminium housing with bronze worm wheel and case-hardened steel worm for quiet, self-lubricated running
- Universal mounting: foot, flange (B5/B14) or combined — output hollow bore to suit your driven shaft
- Output speed around 18 rpm from a 4-pole 50 Hz motor
- 80/1 reduction — very deep reduction for slow-motion, high-torque duty in a compact frame
- Made in Italy by SITI S.p.A.
$258.16
