60096854
MU63 60/1 PAM 19/160
60096854
Out of stock

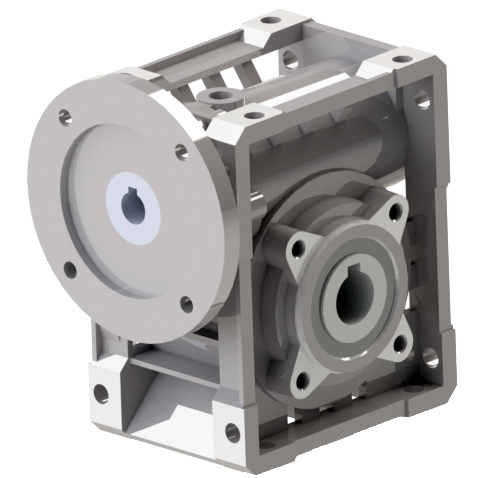

The MU63 from SITI is a mid-compact motorised worm gearbox built on a 63 mm centre-distance housing with direct PAM motor flange, delivering reliable speed reduction for general industrial duty.
- 60/1 ratio — deep reduction delivering strong torque gain and slow output for conveying and positioning duty
- Input: PAM 19/160 flange — direct-mount for IEC 80B14 (0.75–1.1 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving installation space and cost
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Self-locking output at this ratio — strong load-holding when the motor is de-energised
- Aluminium housing keeps weight low while preserving rigidity for general industrial duty
- Made in Italy by SITI S.p.A.
$487.40
