60125074
I30 50/1
60125074
Out of stock

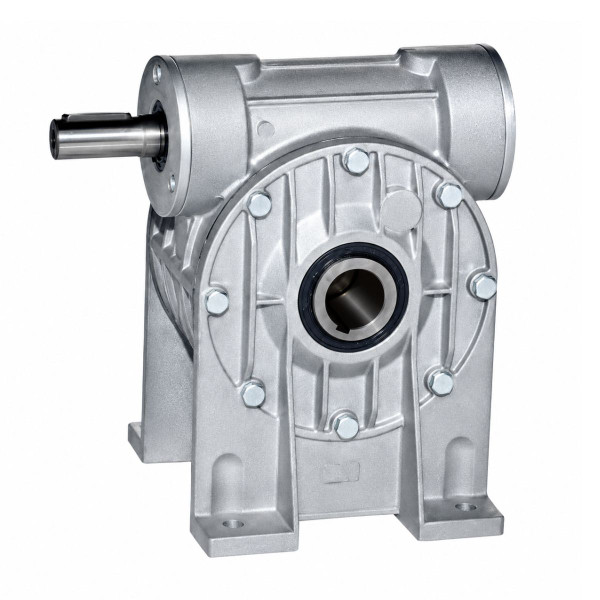

The I30 from SITI is an ultra-compact worm gear reducer built on a 30 mm centre-distance housing, supplied with a standard input shaft and hollow-bore output in the baseline configuration and suited to light instrumentation and small automation.
- 50/1 ratio — deep reduction delivering strong torque gain and slow output for high-force conveying and positioning
- Aluminium housing with case-hardened steel worm and bronze worm wheel — self-lubricating, quiet running, low maintenance
- Input shaft configuration — couples to any motor type (IEC, NEMA, servo) via belt, chain or direct coupling
- Hollow-bore output for shaft-mounting directly on the driven machine
- Self-locking output engaged at this ratio — strong load-holding when de-energised
- Made in Italy by SITI S.p.A.
$229.22
