60141716
MU110 60/1 PAM 28/250
60141716
In stock

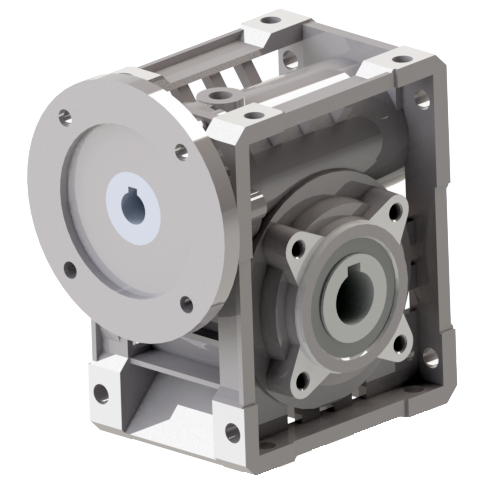

The MU110 from SITI is a heavy-frame motorised worm gearbox built on a 110 mm centre-distance housing with direct PAM motor flange, delivering reliable speed reduction for heavy-duty industrial applications.
- 60/1 ratio — deep reduction delivering strong torque gain and slow output for conveying and positioning duty
- Input: PAM 28/250 flange — direct-mount for IEC 100/112B5 (3–4 kW)
- Hollow-bore output — shaft-mounts directly on the driven machine, saving installation space and cost
- Case-hardened steel worm running against a bronze worm wheel — quiet, self-lubricating, low-maintenance operation
- Self-locking output at this ratio — strong load-holding when the motor is de-energised
- Aluminium housing keeps weight low while preserving rigidity for heavy-duty industrial applications
- Made in Italy by SITI S.p.A.
$1,270.22
