AL100HDC024MA0A1R/R

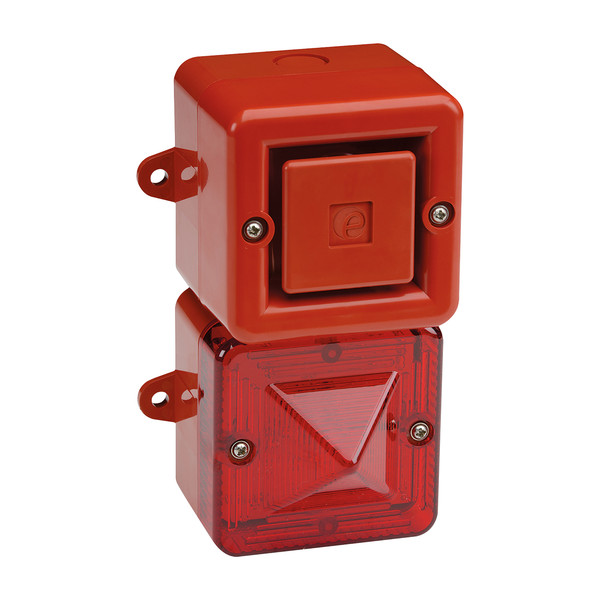

Sounder LED Beacon AL100H 12-24VDC Red/Red

AL100HDC024MA0A1R/R

In stock

AL100HDC024MA0A1R/R (red, 12-24VDC) - features:

Automatic synchronisation
Continuously rated
Dual M20 or 1/2"NPT clearance cable entries
Duplicate pluggable cable terminations - Class A
Ingress protection IP66 Type 3R/13
64 alarm tone frequencies
4 remotely activated alarm stages/channels
Available with custom tone configurations and frequencies
Diode polarized for use in supervised circuits

$875.83

Excl. GST (Excl. GST)

Details
Specifications
Shipping
Downloads

CAD View / Download
Datasheet View / Download
Instruction Manual View / Download

Current Consumption
Maximum output	110dB(A) @ 1 m ±3dB / [101dB(A) @ 10ft/3m ±3dB]
Nominal output	102dB(A) @ 1m ±3dB / [93dB(A) @ 10ft/3m ±3dB]
No. of tones	64 (UKOOA / PFEER compliant)
No. of stages	4
Volume control	-12dB(A) tone dependent
Effective range	38m/124ft @ 1KHz
In rush	636mA within 4.0ms @ 24VDC
Stage switching	Negative (common positive)
Light source	High intensity L.E.D. array. / 18 x Cree© SMT White LED
High Power Steady	180 cd – measured ref. to I.E.S.
1Hz Flash cd	113 cd – measured ref. to I.E.S.
LED life	60,000 hours
Settings	1. High Power Steady / 2. Blinking – 425ms ON 75ms OFF / 3. 1.0Hz (60 fpm) – 200ms ON 800ms OFF / 4. 1.33Hz (80fpm) – 150ms ON 600ms OFF / 5. Double Flash / 6. Triple Flash / 7. 2.0Hz (120fpm) – 125ms ON 375ms OFF / 8. Temporal Pattern Flash
General	/
Safety Integrity Level	SIL1 and SIL2 Route 2H IEC61508 (2010)
Ingress protection	IP66 Type 3R/13
Enclosure	High impact UL94 V0 & 5VA FR ABS/PC
Lens colour filter	Field replaceable UV stable PC
Terminals	0.5 – 2.5mm² (20-14 AWG)
Line monitoring	Diode polarized for use in supervised circuits
Operating	-40 to +66°C [-40° to +151°F]
Storage	-40 to +70°C [-40° to +158°F]
Relative humidity	95% at 20°C [68°F]
Vibration test	35Hz for a duration 4Hr (UL464/UL1638)
Jarring test	3ft/lb Energy (UL464/UL1638)
Impact test	3x 5lb (UL464/UL1638)
MTBF DC	113.31 years / 992,555 hours – MIL 217
MTBF AC	75.37 years / 660,283 hours – MIL 217
Weight DC	0.46kg / 1.01lbs
Weight AC	0.57kg / 1.25lbs
DC024	12VDC / 11.5-14VDC / 79.5mA / 17mA
DC024	24VDC / 16-33VDC / (Regulated) / 87mA / 33.5mA
DC048	48VDC / 48-60VDC / 60mA / 113mA
AC230	115VAC / 230VAC / 48-260VAC 50/60Hz / 34mA / 19mA / 25mA / 17mA
