Name: B300RTH230B/R
Brand: E2S
SKU: B300RTH230B/R
Price: 538.54 AUD
Availability: InStock

B300RTH230B/R

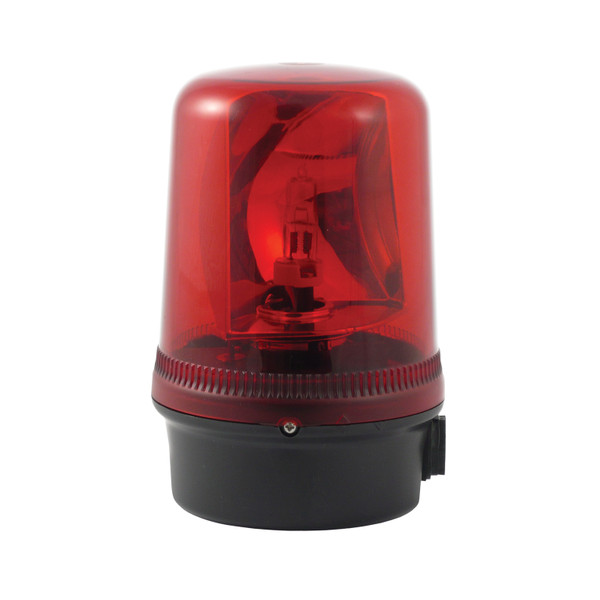

Beacon Rotating B300RTH 25W 230VAC Red

B300RTH230B/R

In stock

B300RTH230B/R (red, 230VAC) - features:

$538.54

Excl. GST (Excl. GST)

Current Consumption
Light source	Halogen Lamp G6,35/GY6,35
Light output	20/25W
Peak Candela	821 cd
Candela	125 cd* (effective intensity)
Rotation speed	180RPM (+/-30RPM)
Drive life	>5,000 hrs
Duty cycle	100%
Lens colours	Amber, Blue, Clear, Green, Red & Yellow
Lens type	Plain
Mounting	Surface mount (right angle or pole mount accessories available)
Entries	1 × 5-7mm push through grommet / 1 x M20 cable entry
Dimensions	ø100 x 150mm
Ingress protection	IP65
Housing material	High impact UL94 V0 (f1) PC
Lens material	High impact UL94 V0 (f1) PC
Terminals	1.5 mm² flying lead assembly
Operating temp	-25 to +50°C [-13° to +122°F]
Storage temp	-40 to +70°C [-40 to +158°F]
Relative humidity	90% at 20°C [68°F]
Weight	370g/0.81Ibs
12VDC	1.72A
24VDC	0.91A
115VAC 50/60Hz	216mA
230VAC 50/60Hz	117mA

B300RTH230B/R
