Name: B400LDA050B/G
Brand: E2S
SKU: B400LDA050B/G
Price: 1571.43 AUD
Availability: InStock

B400LDA050B/G

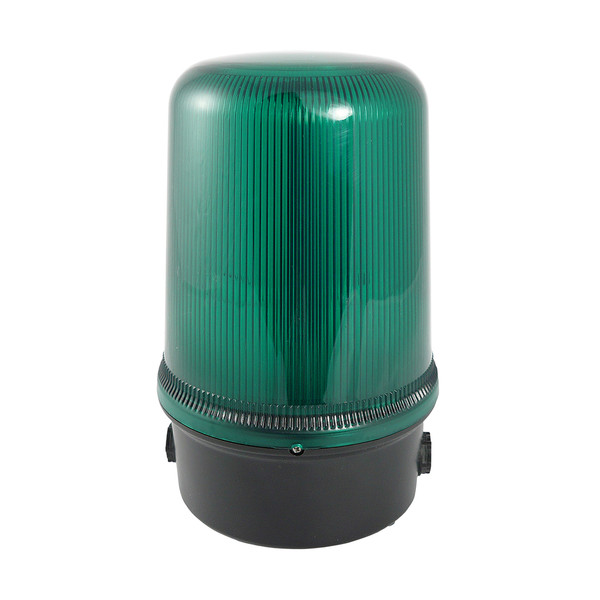

B400LDA LED 10-50VDC Green

B400LDA050B/G

In stock

B400LDA050B/G (green, 10-50VDC) - features:

$1,571.43

Excl. GST (Excl. GST)

Current Consumption
Light source	Array of 32 high output L.E.D.’s
Function	Total of 9 user selectable operation modes: / 4 rotating configurations. / 4 flashing configurations. / *Steady mode for status applications.
Stages	DC unit: remotely selectable / 2nd & 3rd stage pattern.
Peak/Effective Intensity cd	30 cd* – measured ref. to I.E.S.
Lens colours	Amber, Blue, Clear, Green, Red & Yellow
Lens type	Prismatic (standard) or plain
Mounting	Surface mount (right angle or pole mount accessories available)
Entries	1 × 5-7mm push through grommet / 2 x M20 cable entry
Dimensions	ø140 x 220mm
Ingress protection	IP65
Housing material	High impact UL94 V0 (f1) PC
lens material	High impact UL94 V0 (f1) PC
Terminals	1.5 mm² flying lead assembly
Operating temp	-25 to +50°C [-13 to +122°F]
Storage temp	-40 to +70°C [-40 to +158°F]
Relative humidity	90% at 20°C [68°F]
Weight	AC:845g/1.85Ibs DC:595g/1.3Ibs / \|\2.*Candela measurements representative of performance with clear lens at optimum voltage
10-50VDC	400mA @ 24VDC
115VAC 50/60Hz	140mA
230VAC 50/60Hz	70mA
