DRF-12V120W1GBA
Force-G PSU 10A 120W 1ph 85-264VAC/12VDC
DRF-12V120W1GBA
In stock

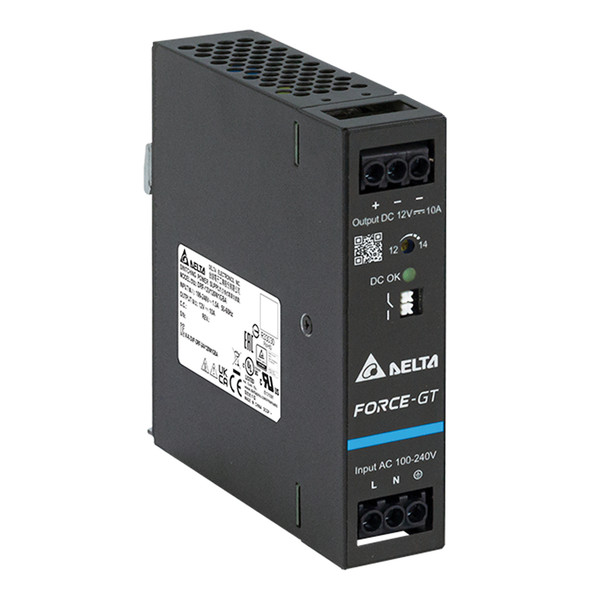

The DRF-12V120W1GBA from Delta Electronics is a 12V 120W 10A DIN-rail-mounted switching power supply from the Force-GT Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 12V at 10A for 120W total power
- Universal AC input accepts 90–264VAC at 47-63Hz for global deployment
- Output voltage adjustable 12–14VDC via front-panel trim
- Typical efficiency 93% typ. @ 230 Vac
- Rated for ambient operating temperature -40°C to +70°C
- Typical efficiency 93.0% at full load
- Convection cooling — no fan required
$124.11
