DRF-24V120W1GBA
Force-G PSU 5A 120W 1ph 85-264VAC/24VDC
DRF-24V120W1GBA
Out of stock

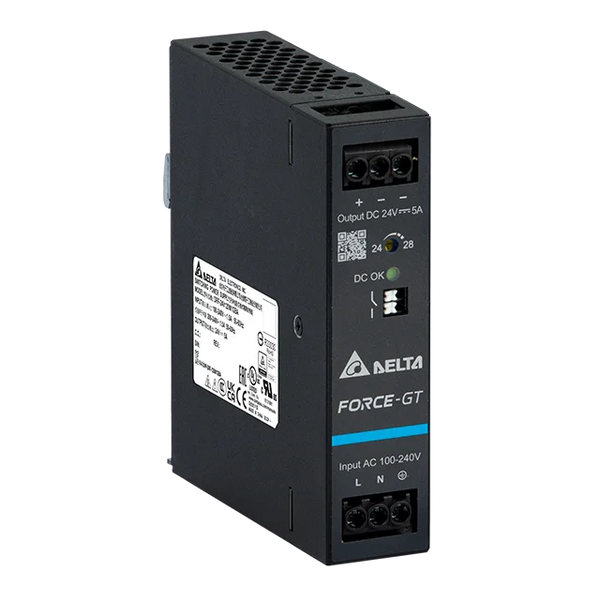

The DRF-24V120W1GBA from Delta Electronics is a 24V 120W 5A DIN-rail-mounted switching power supply from the Force-GT Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 5A for 120W total power
- Universal AC input accepts 90–264VAC at 47-63Hz for global deployment
- Output voltage adjustable 24–28VDC via front-panel trim
- Typical efficiency 93.5 typ. @ 230 Vac
- Rated for ambient operating temperature -40°C to +70°C
- Convection cooling — no fan required
- Status indicator: Green LED DC OK
$123.89
