DRF-24V120W3GBA
Force-G PSU 5A 120W 3ph 320-575VAC/24VDC
DRF-24V120W3GBA
In stock

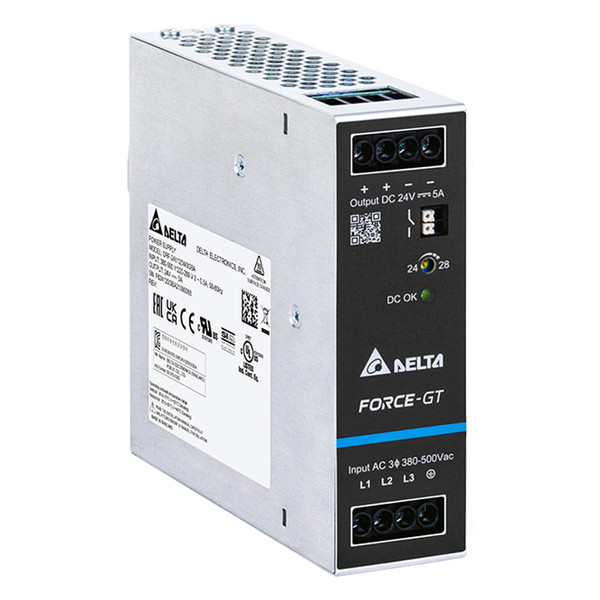

The DRF-24V120W3GBA from Delta Electronics is a 24V 120W 5A DIN-rail-mounted switching power supply from the Force-GT Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 5A for 120W total power
- Universal AC input accepts 3 x 320–575VAC (3-Phase) or 2 x 340–575VAC (2-Phase) at 47-63Hz for global deployment
- Output voltage adjustable 24–28VDC via front-panel trim
- Typical efficiency 87.5% typ. @ 3 x 400 Vac & 3 x 500 Vac
- Rated for ambient operating temperature 3-Phase -40°C to +70°C; 2-Phase -40°C to +60°C
- Ingress protection IP20
- Typical efficiency 87.5% at full load
$164.32
