DRF-24V480W3GBA
Force-G PSU 20A 480W 3ph 320-575VAC/24VDC
DRF-24V480W3GBA
In stock

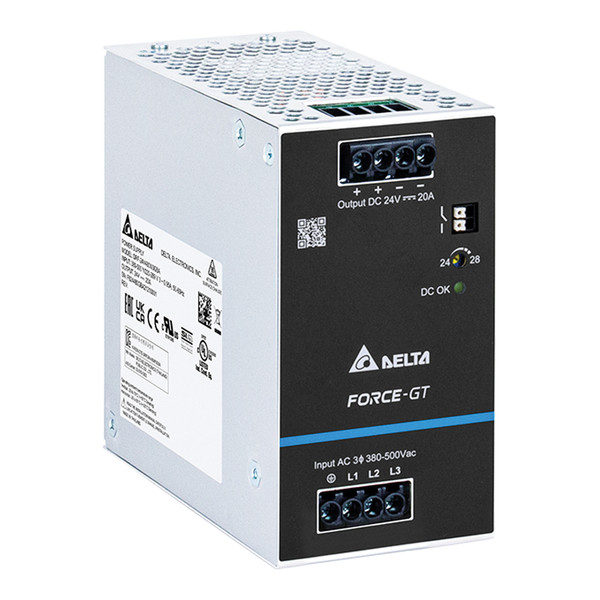

The DRF-24V480W3GBA from Delta Electronics is a 24V 480W 20A DIN-rail-mounted switching power supply from the Force-GT Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 20A for 480W total power
- Universal AC input accepts 3 x 320–575VAC (3-Phase) or 2 x 340–575VAC (2-Phase) at 47-63Hz for global deployment
- Output voltage adjustable 24–28VDC via front-panel trim
- Typical efficiency 94% typ. @ 3 x 400 Vac & 500 Vac
- Rated for ambient operating temperature 3-Phase -40°C to +70°C; 2-Phase -40°C to +60°C
- Ingress protection IP20
- Typical efficiency 94.0% at full load
$428.92
