DRL-12V75W1AZ
LYTE II PSU 6.25A 75W 1ph 85-264VAC/12VDC
DRL-12V75W1AZ
In stock

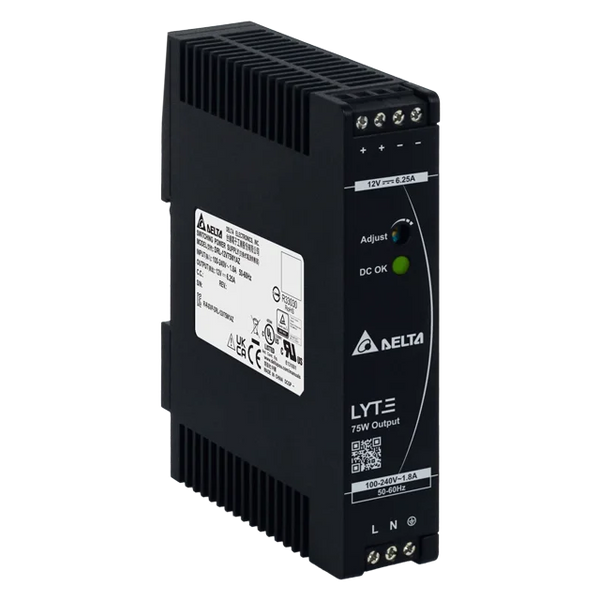

The DRL-12V75W1AZ from Delta Electronics is a 12V 75W 6.25A DIN-rail-mounted switching power supply from the LYTE Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 12V at 6.25A for 75W total power
- Universal AC input accepts 85–264VAC at 47-63Hz for global deployment
- Output voltage adjustable 10.8–13.2VDC via front-panel trim
- Typical efficiency 87.5% typ. @ 230Vac
- Rated for ambient operating temperature -20°C to +70°C (-30°C Cold Start)
- Ingress protection IP20
- Typical efficiency 87.5% at full load
$49.99
