Name: DRL-24V240W1AA
Brand: Delta
SKU: DRL-24V240W1AA
Price: 165.59 AUD
Availability: InStock

DRL-24V240W1AA

Power Supply LYTE 10A 1PH 85-264VAC/24VDC

DRL-24V240W1AA

In stock

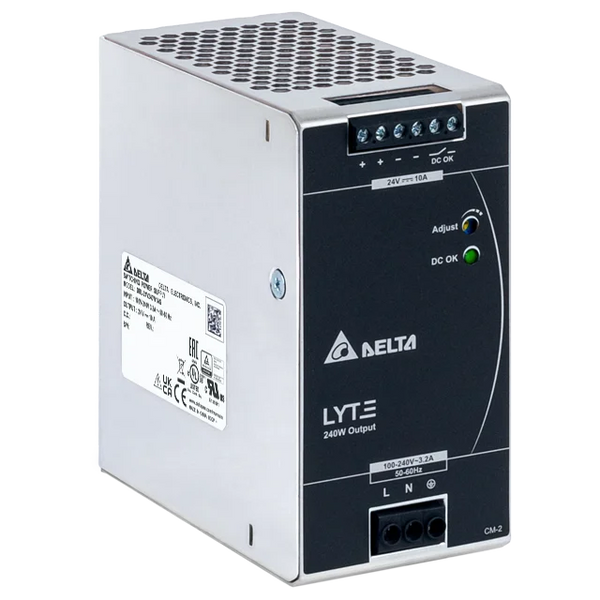

The DRL-24V240W1AA from Delta Electronics is a 24V 240W 10A DIN-rail-mounted switching power supply from the LYTE Series, designed for industrial control cabinets and machine wiring.

Regulated DC output delivering 24V at 10A for 240W total power
Universal AC input accepts 85–264VAC at 47-63Hz for global deployment
Output voltage adjustable 22–28VDC via front-panel trim
Typical efficiency 88%typ.@115Vac, 90% typ.@ 230Vac
Rated for ambient operating temperature -20°C to +70°C
Ingress protection IP20
Typical efficiency 88.0% at full load

$165.59

Excl. GST (Excl. GST)

Datasheet View / Download

Power Supply Type	DIN Rail Switching PSU
Input Voltage Range	85–264VAC
Input Frequency	47-63Hz
Output Voltage	24V
Output Current	10A
Output Power	240W
Output Adjustment Range	22–28VDC
Line Regulation	< 0.5% (@ 85-264VAC, 100% load)
Load Regulation	-10°C to +70°C < 1.5% (0-100% load) @ <= -10°C to -20°C
Operating Temperature	-20°C to +70°C
Operating Humidity	5 to 95% RH (Non-Condensing)
Input Terminal	3 Pins (Rated 600V/35A)
Output Terminal	6 Pins (Rated 300V/28A)
Ingress Protection	IP20
Certifications	TUV Bauart: : EN 60950-1, EN 62368-1 UL/cUL recognized UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881) CB scheme: IEC 60950-1, IEC 62368-1
MTBF	Telcordia SR-332: > 700,000 hrs I/P: 100VAC, O/P: 100% load, Ta: 25°C
Dimensions (L×W×H)	123.6 x 60 x 117.6mm
Weight	0.80kg (1.76lb)
Manufacturer	Delta Electronics
