DRL-24V240W1EN
LYTE II PSU 10A 240W 1ph 85-264VAC/24VDC
DRL-24V240W1EN
In stock

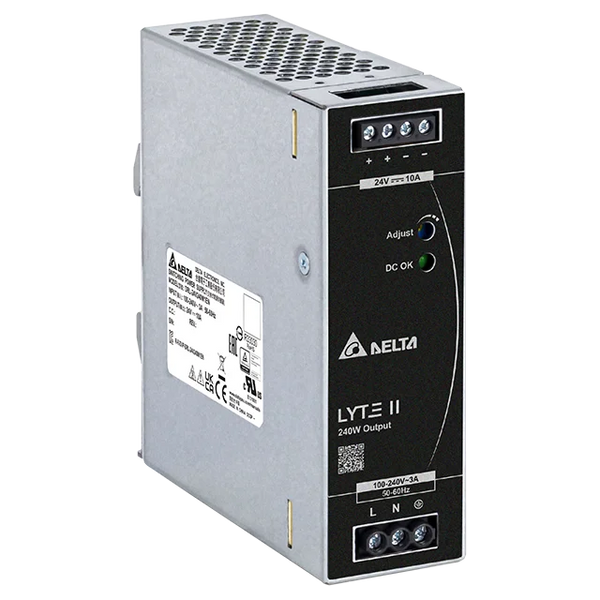

The DRL-24V240W1EN from Delta Electronics is a 24V 240W 10A DIN-rail-mounted switching power supply from the LYTE II Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 10A for 240W total power
- Universal AC input accepts 90–264VAC at 47-63Hz for global deployment
- Output voltage adjustable 21.6–26.4VDC via front-panel trim
- Typical efficiency 90% typ. @ 230Vac
- Rated for ambient operating temperature -40°C to +70°C
- Typical efficiency 90.0% at full load
- Convection cooling — no fan required
$119.98
