DRP024V060W3BN
CliQ II PSU 2.5A 60W 3ph 320-575VAC/24VDC
DRP024V060W3BN
In stock

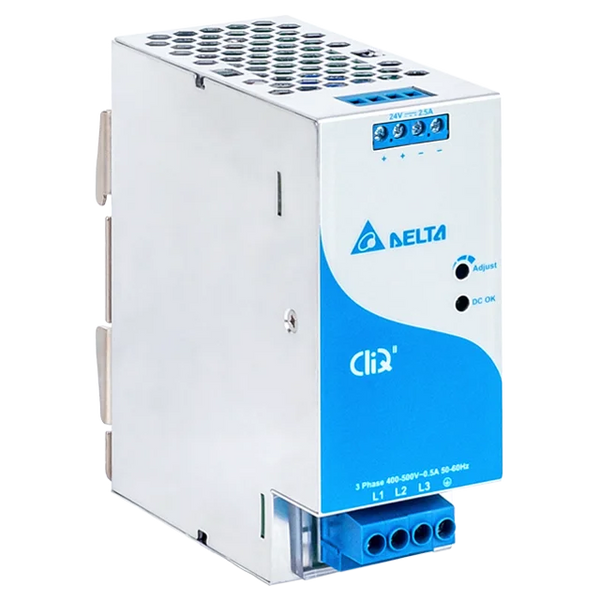

The DRP024V060W3BN from Delta Electronics is a 24V 60W 2.5A DIN-rail-mounted switching power supply from the CliQ II Series, designed for industrial control cabinets and machine wiring.
- Regulated DC output delivering 24V at 2.5A for 60W total power
- Universal AC input accepts 3 x 320–600VAC at 47-63Hz for global deployment
- Output voltage adjustable 24–28VDC via front-panel trim
- Typical efficiency > 86% @ 3 x 400Vac & 3 x 500Vac
- Rated for ambient operating temperature -25°C to +80°C (Cold Start at -40°C)
- Ingress protection IP20
- Typical efficiency 86.0% at full load
$140.23
