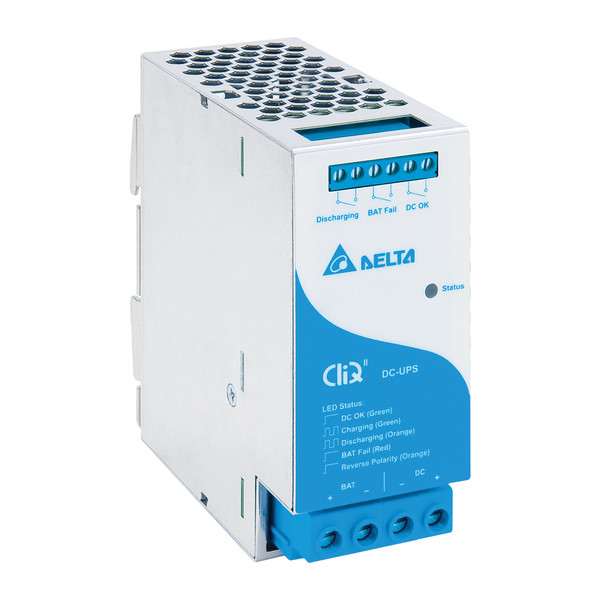

DRU-24V40ABN
DC-UPS Module 24VDC 40A
DRU-24V40ABN
In stock
The DRU-24V40ABN from Delta Electronics is a 24V 960W 40A CliQ II DC-UPS Module Series configurable switching power supply from the CliQ II Series, designed for customisable industrial power applications including DC-UPS and buffer modules.
- Regulated DC output delivering 24V at 40A for 960W total power
- DC input accepts 24–28VDC for battery-backed and buffered supply applications
- Efficiency: 70.0%% charging, 99.0%% buffering
- Rated for ambient operating temperature -20°C to +60°C (full power)
- Ingress protection IP20
- Typical efficiency 70.0% at full load
- Convection cooling — no fan required
$121.72
