EOS2 2B X
TYPE2 ACCESS SAFETY CURTAIN 510MM
EOS2 2B X
In stock

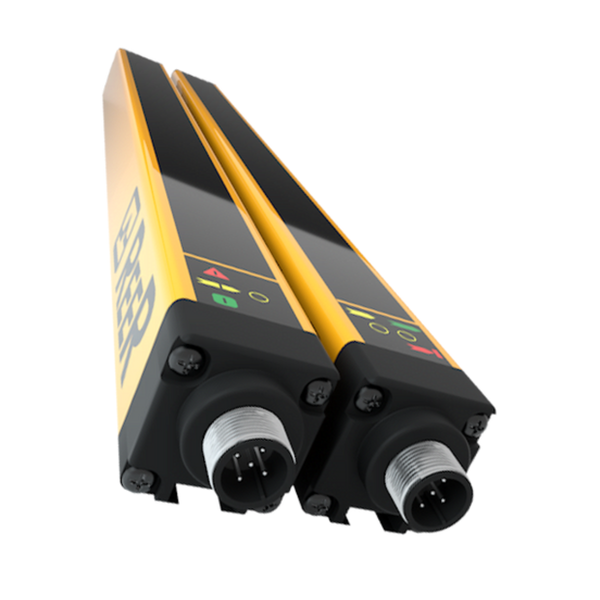

The EOS2 2B X from ReeR is an access control detection safety light curtain, rated to Type 2 - SIL 1 - SILCL 1 - PL c - Cat. 2 with a maximum operating range of 12m.
- Controlled height of 590mm with 2 beams
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 3ms Response time for fast detection
- M12 5-pole connector (emitter), M12 8-pole connector (receiver)
- Made in Italy by ReeR S.p.A.
$746.67
