EOS2 453 X
TYPE2 HAND SAFETY CURTAIN 460MM
EOS2 453 X
In stock

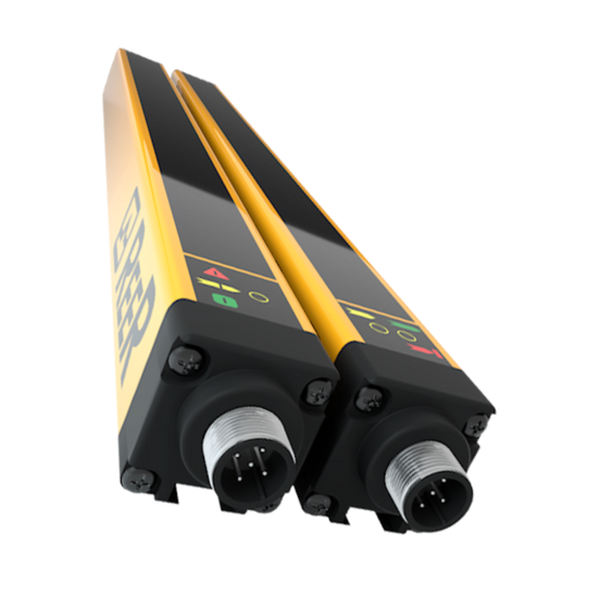

The EOS2 453 X from ReeR is a hand detection safety light curtain, rated to Type 2 - SIL 1 - SILCL 1 - PL c - Cat. 2 with a maximum operating range of 12m.
- Controlled height of 450mm with 23 beams
- 30mm Resolution for hand detection
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 8ms Response time for fast detection
- Made in Italy by ReeR S.p.A.
$941.45
