Name: EOS2 4B X
Brand: Reer
SKU: EOS2 4B X
Price: 955.85 AUD
Availability: InStock

EOS2 4B X

TYPE2 ACCESS SAFETY CURTAIN 910MM

EOS2 4B X

In stock

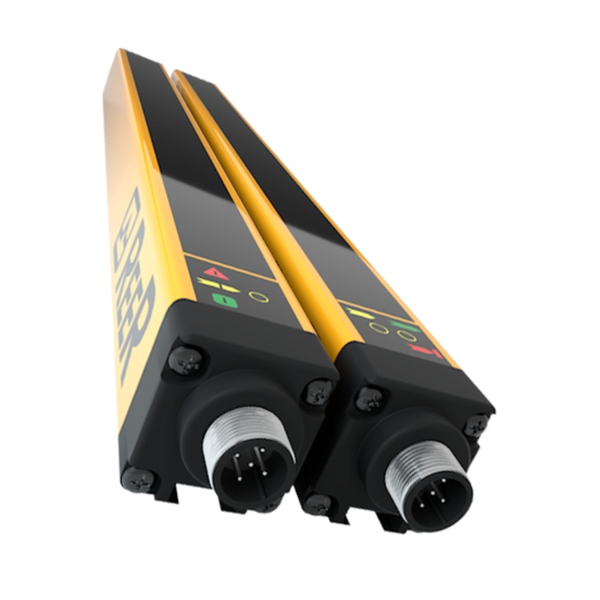

The EOS2 4B X from ReeR is an access control detection safety light curtain, rated to Type 2 - SIL 1 - SILCL 1 - PL c - Cat. 2 with a maximum operating range of 12m.

Controlled height of 990mm with 4 beams
Compact 28 x 30mm cross section for space-constrained installations
2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
User-selectable automatic or manual restart mode
3.5ms Response time for fast detection
M12 5-pole connector (emitter), M12 8-pole connector (receiver)
Made in Italy by ReeR S.p.A.

$955.85

Excl. GST (Excl. GST)

Details
Specifications
Shipping
Downloads

CAD View / Download
Certifications View / Download
Datasheet View / Download
Instruction Manual View / Download

Product Type	Safety Light Curtain
Safety Level	Type 2 - SIL 1 - SILCL 1 - PL c - Cat. 2
Detection	Access control
Resolution	Multi-beams
Controlled Height	990mm
Protected Height	910mm
Overall Height	1053mm
Number of Beams	4
Max. Operating Range	12m
Operating Range	Selectable: 0–4m - low range / 0–12m - high range
Response Time	3.5ms
Safety Output Type	2 fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
Safety Outputs	2 OSSD PNP (400mA at 24VDC)
Power Supply	24VDC ± 20%
Connections	M12 5-pole connector (emitter), M12 8-pole connector (receiver)
Cross Section	28 x 30
Restart	Built-in - User selectable automatic or manual
Operating Temperature	-30°C to +55°C
Degree of Protection	IP65 - IP67
Fastening	Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional)
Manufacturer	ReeR S.p.A. - Made in Italy
