EOS4 2B X
TYPE4 ACCESS SAFETY CURTAIN 510MM
EOS4 2B X
In stock

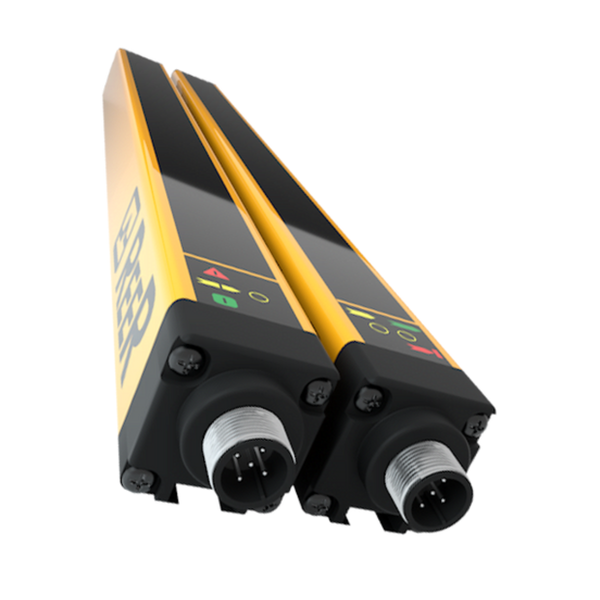

The EOS4 2B X from ReeR is an access control detection safety light curtain, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 12m.
- Controlled height of 590mm with 2 beams
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 2.5ms Response time for fast detection
- M12 5-pole connector (emitter), M12 8-pole connector (receiver)
- Made in Italy by ReeR S.p.A.
$824.05
