EOS4 451 X
TYPE4 FINGER SAFETY CURTAIN 460MM
EOS4 451 X
In stock

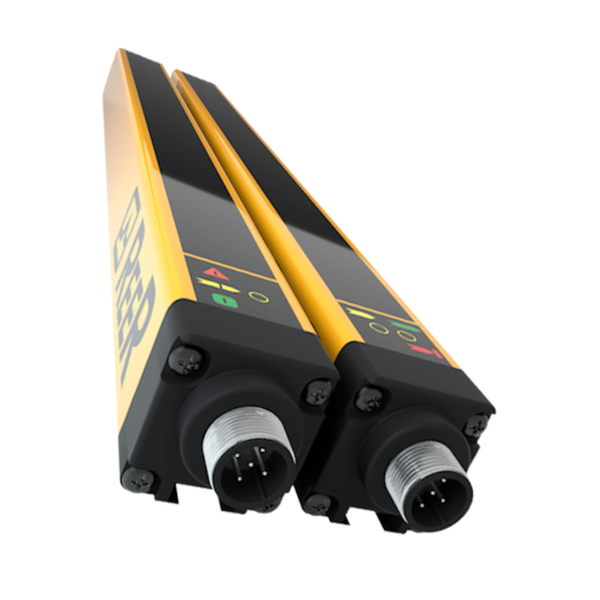

The EOS4 451 X from ReeR is a finger detection safety light curtain, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 6m.
- Controlled height of 450mm with 45 beams
- 14mm Resolution for finger detection
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 7.5ms Response time for fast detection
- Made in Italy by ReeR S.p.A.
$1,827.69
