EOS4 751 X
TYPE4 FINGER SAFETY CURTAIN 760MM
EOS4 751 X
In stock

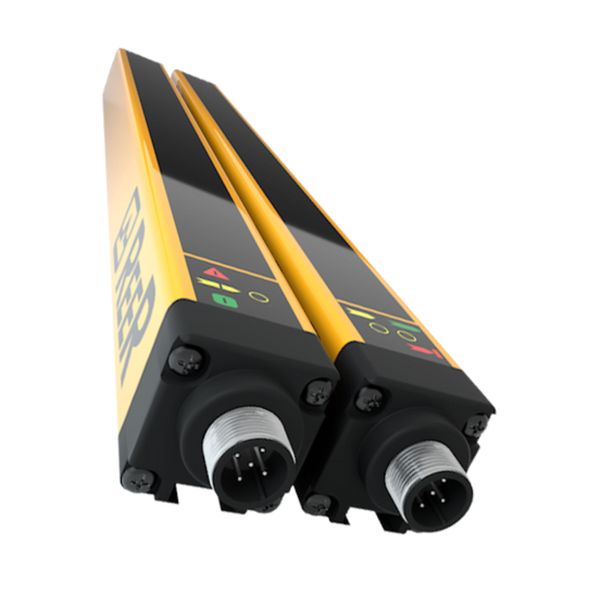

The EOS4 751 X from ReeR is a finger detection safety light curtain, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 6m.
- Controlled height of 750mm with 75 beams
- 14mm Resolution for finger detection
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 11ms Response time for fast detection
- Made in Italy by ReeR S.p.A.
$2,509.20
