EOS4 903 X
TYPE4 HAND SAFETY CURTAIN 910MM
EOS4 903 X
In stock

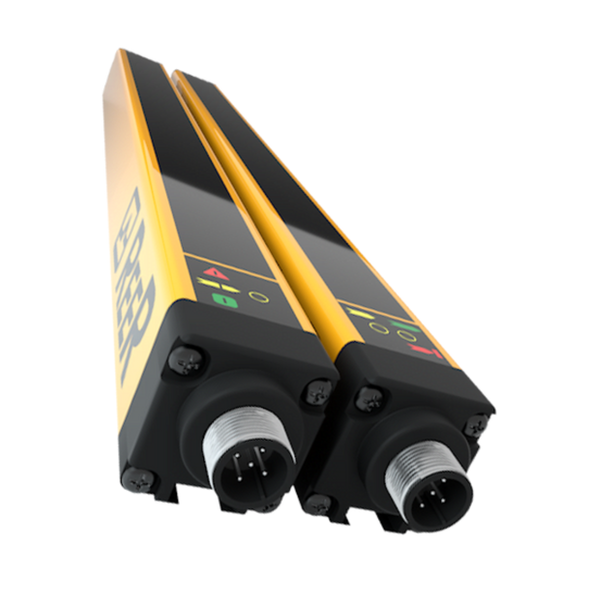

The EOS4 903 X from ReeR is a hand detection safety light curtain, rated to Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 with a maximum operating range of 12m.
- Controlled height of 900mm with 46 beams
- 30mm Resolution for hand detection
- Compact 28 x 30mm cross section for space-constrained installations
- 2 Fail-safe PNP (400mA at 24VDC) with protection against short circuit, overload and reverse polarity
- User-selectable automatic or manual restart mode
- 12.5ms Response time for fast detection
- Made in Italy by ReeR S.p.A.
$1,648.03
