FC10-M30-BP6L-Q12
M30 10mm 10-30VDC PNP NO+NC CAP PROXI
FC10-M30-BP6L-Q12
Out of stock

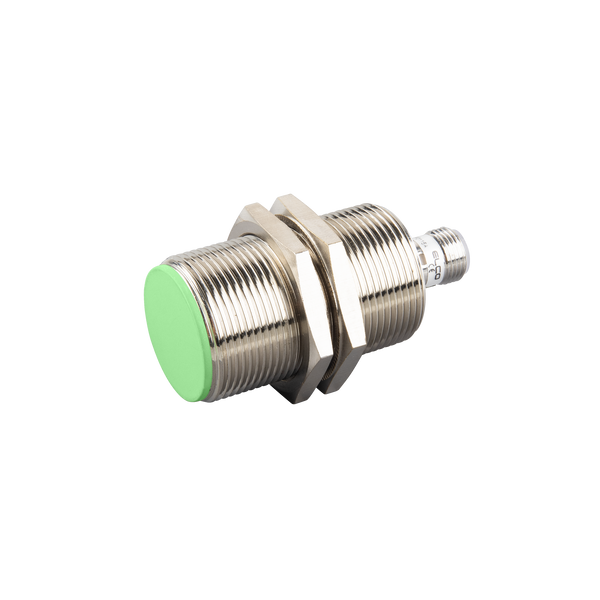

The FC10-M30-BP6L-Q12 from Elco Automation is a larger-bodied capacitive proximity sensor in M30 threaded cylindrical housing, providing detection at up to 10mm.
- 10mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- PNP normally closed contact and normally open contact output on 10–30VDC supply
- 50Hz switching frequency — standard response speed for general industrial control
- M12 plug, 4-pin connector for fast field termination and replacement
- Nickel-plated brass M30 × 66.5mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
$89.80
