FC15-KM30-BP6L-Q12
M30 15mm 10-30VDC PNP NO+NC CAP PROXI
FC15-KM30-BP6L-Q12
Out of stock

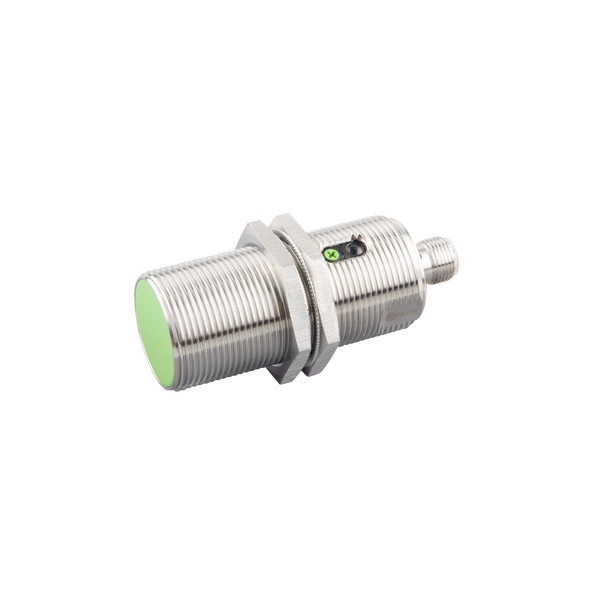

The FC15-KM30-BP6L-Q12 from Elco Automation is a larger-bodied capacitive proximity sensor in M30 threaded cylindrical housing, providing detection at up to 15mm.
- 15mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- PNP normally closed contact and normally open contact output on 10–30VDC supply
- 10Hz switching frequency — suits contactor-switched and slower control logic
- M12 plug, 4-pin connector for fast field termination and replacement
- Stainless steel M30 × 81mm housing — corrosion-resistant for washdown and food-industry environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
$130.53
