Fi10-M30-LIU-Q12
M18 1-5mm Analog Output 10-30 VDC
Fi10-M30-LIU-Q12
Out of stock

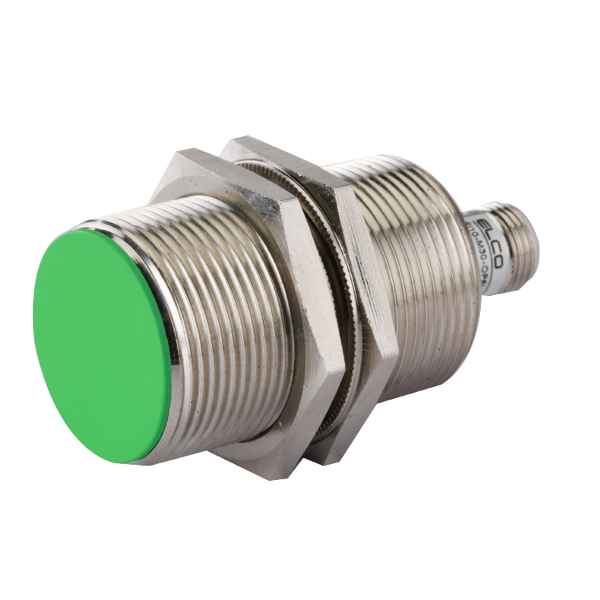

The Fi10-M30-LIU-Q12 from Elco Automation is a larger-bodied inductive proximity sensor in M30 threaded cylindrical housing, providing detection at up to 10mm.
- 10mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- Analogue 0–10VDC / 0–20mA output on 15–30VDC supply
- 400Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 4-pin connector for fast field termination and replacement
- Nickel-plated brass M30 × 75.5mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
$146.45
