Fi8-G18-CD6L-Q12
M18 8mm NC 10-30VDC PROXI
Fi8-G18-CD6L-Q12
Out of stock

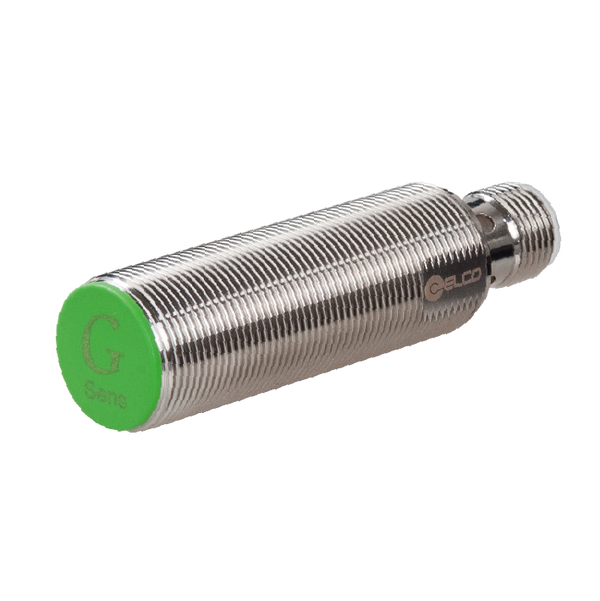

The Fi8-G18-CD6L-Q12 from Elco Automation is a standard-size inductive proximity sensor in M18 threaded cylindrical housing, providing detection at up to 8mm.
- 8mm switching distance with flush mounting — the sensing face sits level with the mounting surface without losing range
- Two-wire normally closed contact output on 10–30VDC supply
- 650Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 2-pin connector for fast field termination and replacement
- Nickel-plated brass M18 × 65mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
$77.40
