NC15-M30-CSA3L-Q12
M30 15mm 20-250VAC SCR NC CAP PROXI
NC15-M30-CSA3L-Q12
Out of stock

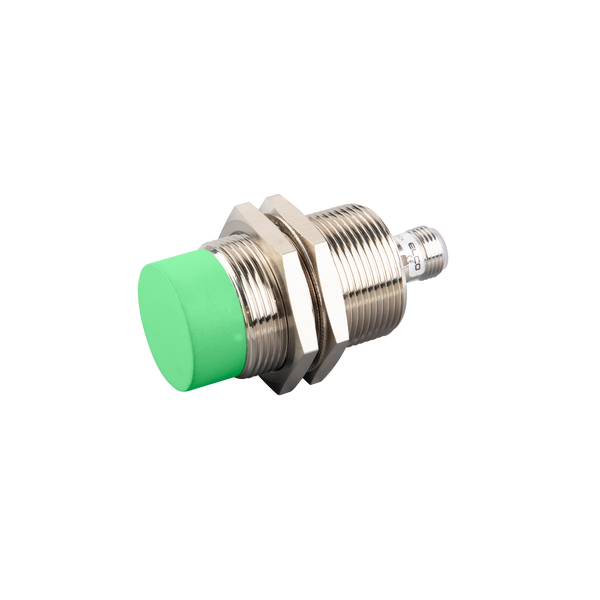

The NC15-M30-CSA3L-Q12 from Elco Automation is a larger-bodied capacitive proximity sensor in M30 threaded cylindrical housing, providing detection at up to 15mm.
- 15mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- Two-wire normally closed contact output on 20–250VAC supply
- 15Hz switching frequency — suits contactor-switched and slower control logic
- M12 plug, 2-pin connector for fast field termination and replacement
- Nickel-plated brass M30 × 85mm housing — robust in metal-rich and mildly aggressive plant environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
$92.08
