Ni22-G30-CA41L-Q12
M30 22mm NC 20-250V AC/DC PROXI
Ni22-G30-CA41L-Q12
Out of stock

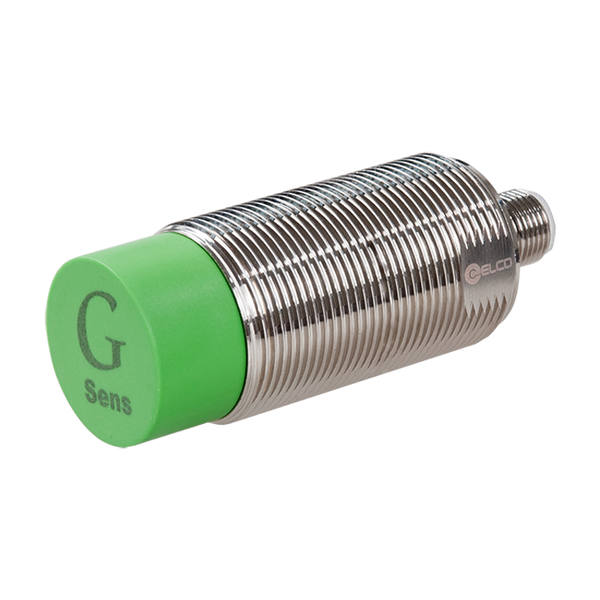

The Ni22-G30-CA41L-Q12 from Elco Automation is a larger-bodied inductive proximity sensor in M30 threaded cylindrical housing, providing detection at up to 22mm.
- 22mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- Two-wire normally closed contact output on 20–250VAC/DC supply
- 20Hz (AC) / 200Hz (DC) switching frequency — suits contactor-switched and slower control logic
- M12 plug, 2-pin connector for fast field termination and replacement
- Nickel-plated brass M30 × 85mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
$114.68
