Ni22-G30-OD6L-Q12
M30 22mm NO 10-30VDC PROXI
Ni22-G30-OD6L-Q12
Out of stock

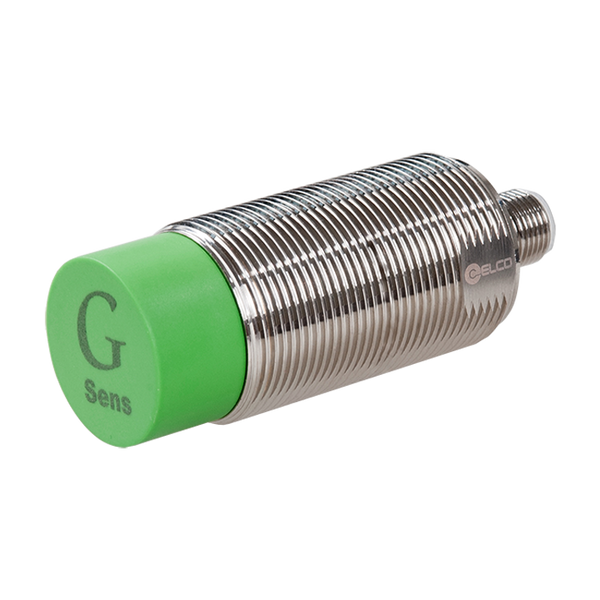

The Ni22-G30-OD6L-Q12 from Elco Automation is a larger-bodied inductive proximity sensor in M30 threaded cylindrical housing, providing detection at up to 22mm.
- 22mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- Two-wire NO contact output on 10–30VDC supply
- 200Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 2-pin connector for fast field termination and replacement
- Nickel-plated brass M30 × 80mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
$103.63
