Ni40-W40-OD6L-Q12
M12 40mm 10-30VDC NO Rectangular PROXI
Ni40-W40-OD6L-Q12
Out of stock

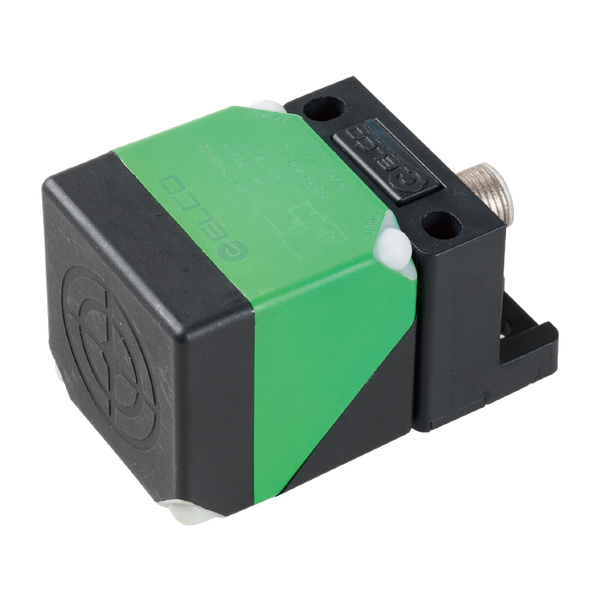

The Ni40-W40-OD6L-Q12 from Elco Automation is a large-format inductive proximity sensor in rectangular housing, providing detection at up to 40mm.
- 40mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- Two-wire NO contact output on 10–30VDC supply
- 50Hz switching frequency — standard response speed for general industrial control
- M12 plug, 2-pin connector for fast field termination and replacement
- Plastic (PBT) 40 × 40 × 66mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +70°C operating range; CE, RoHS, REACH certified
$69.48
