Ni8-G12-ON6L-Q12
M12 8mm NPN NO 10-30VDC PROXI
Ni8-G12-ON6L-Q12
Out of stock

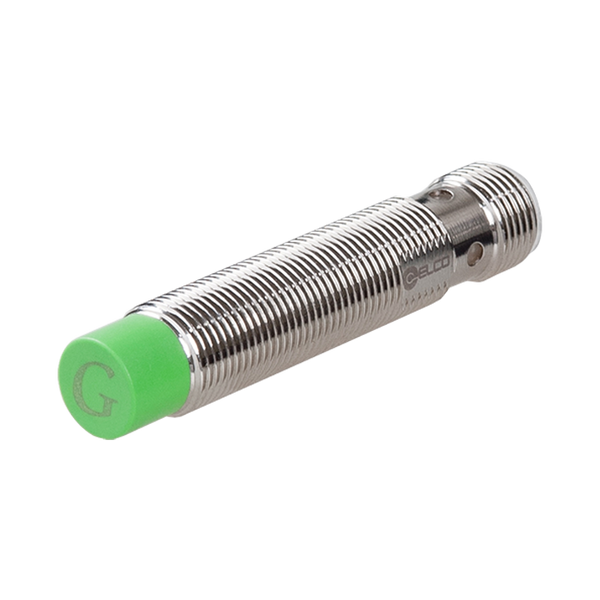

The Ni8-G12-ON6L-Q12 from Elco Automation is a standard inductive proximity sensor in M12 threaded cylindrical housing, providing detection at up to 8mm.
- 8mm switching distance with non-flush mounting — a clear zone around the sensing face is required to reach full range
- NPN NO contact output on 10–30VDC supply
- 500Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 3-pin connector for fast field termination and replacement
- Nickel-plated brass M12 × 62mm housing — robust in metal-rich and mildly aggressive plant environments
- IP68 protection and -30°C to +85°C operating range; CE, RoHS, REACH certified
$63.58
