OS10-S6Q8
25m EMITTER TH/BEAM SENSOR
OS10-S6Q8
In stock

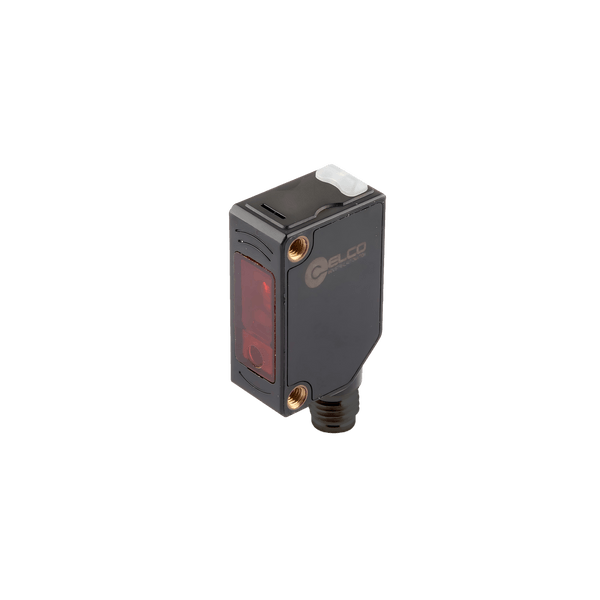

The OS10-S6Q8 from Elco Automation is a large-format photoelectric sensor in rectangular housing, providing detection at up to 30m.
- 30m operating range (Through-beam)
- Infrared light emitter — matched to industrial automation targets and surfaces
- Through-beam transmitter — pair with a matching receiver; object detection is signalled when the emitted beam is interrupted at the receiver
- 10–30VDC supply for direct control-panel integration
- M8 plug, 4-pin connector for fast field termination and replacement
- Plastic (PA66) 32.8 × 12 × 20mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +55°C operating range; CE, RoHS, REACH certified
$58.46
