OSQ18-EVP6Q
M18 3.5m PNP NO+NC PHOTO SEN TH/BEAM
OSQ18-EVP6Q
Out of stock

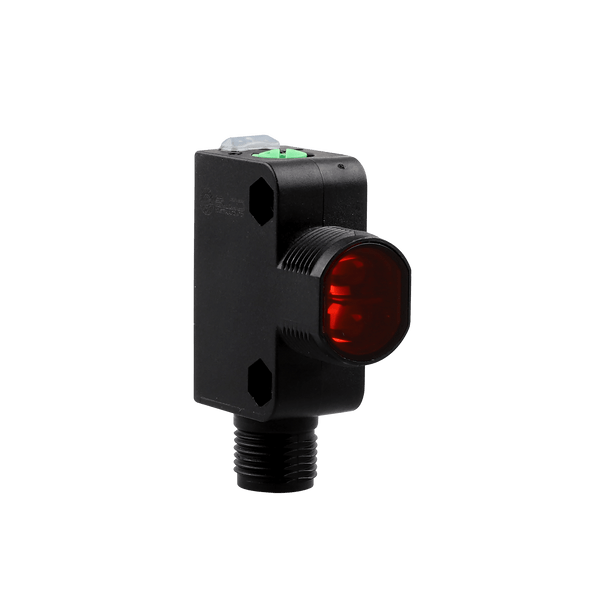

The OSQ18-EVP6Q from Elco Automation is a large-format photoelectric sensor in rectangular housing, providing detection at up to 25m.
- 25m operating range (Through-beam)
- Through-beam receiver — pair with a matching transmitter; signals detection when the incoming beam is interrupted
- PNP light and dark switching output on 10–30VDC supply
- 800Hz switching frequency — suits fast-response presence detection and part counting
- M12 plug, 4-pin connector for fast field termination and replacement
- Plastic (PA66) 45.6 × 13.9 × 31mm housing — corrosion-immune in damp or mildly aggressive environments
- IP67 protection and -25°C to +55°C operating range; CE, RoHS, REACH certified
$58.95
