SIT22310000F
I150FP 100/1
SIT22310000F
In stock

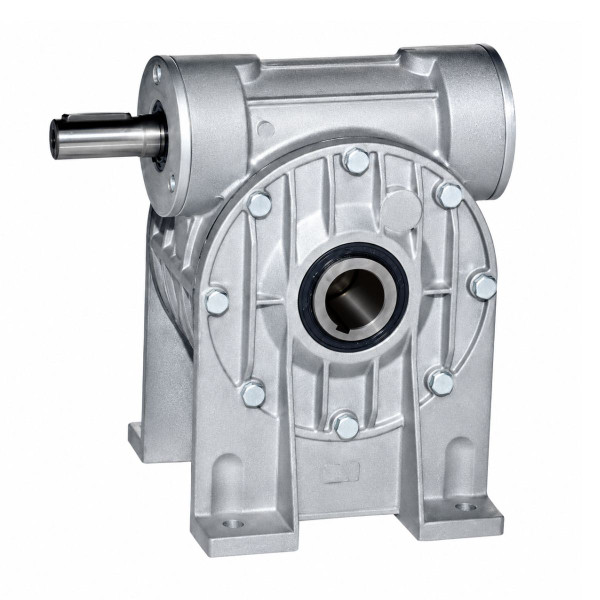

The I150FP from SITI is a large-frame worm gear reducer built on a 150 mm centre-distance housing, supplied with a flange-mounted housing with projecting output shaft (FP variant) and suited to heavy-duty large-scale applications.
- 100/1 ratio — very deep reduction producing very high output torque and very slow shaft speed for winch, lift or slow-turn duty
- Aluminium housing with case-hardened steel worm and bronze worm wheel — self-lubricating, quiet running, low maintenance
- Input shaft configuration — couples to any motor type (IEC, NEMA, servo) via belt, chain or direct coupling
- Flange-mount housing with projecting output shaft (variant FP) — combines face-mounting with a keyed shaft output
- Self-locking output engaged at this ratio — strong load-holding when de-energised
- Made in Italy by SITI S.p.A.
$3,123.74
