SITB1005224C
MBH63C 52.76/1 PAM 24/200 BEVEL HELICAL G/BOX
SITB1005224C

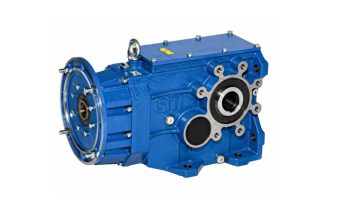

The MBH63C from SITI is an entry-size bevel-helical gearmotor combining a spiral-bevel stage with a helical reduction stage, built on a 63 mm centre-distance housing and configured with coupled output (hollow bore) for light-to-mid duty applications.
- 52.76/1 reduction — deep ratio delivering strong torque multiplication for slow-speed, high-load conveying, mixing or winching duty
- Input: PAM 24/200 flange — direct mount for IEC 90B5 (1.5–2.2 kW)
- Hollow-bore output for shaft-mounted installation on the driven machine — removes the need for a separate coupling and reduces drive-train length
- Bevel-helical arrangement delivers ~94% efficiency per stage — substantially higher than worm designs at the same ratio, and runs cooler under continuous duty
- Cast-iron housing and case-hardened helical/bevel gear set for long service life in light-to-mid duty applications
- Made in Italy by SITI S.p.A.
$1,310.88
