SITB1203028C
MBH80C 30.24/1 PAM 28/250 BEVEL HELICAL G/BOX
SITB1203028C

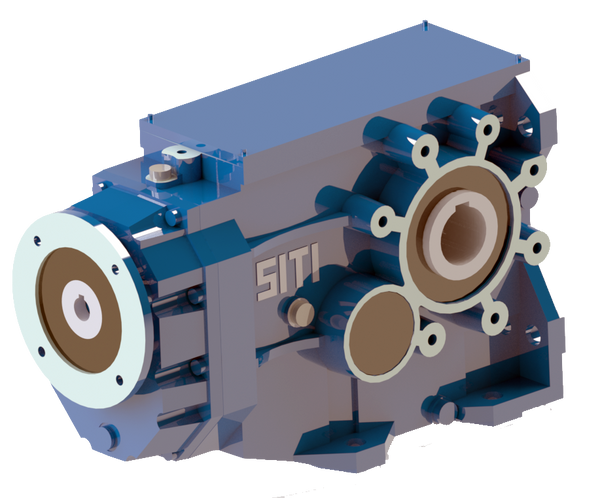

The MBH80C from SITI is a mid-size bevel-helical gearmotor combining a spiral-bevel stage with a helical reduction stage, built on an 80 mm centre-distance housing and configured with coupled output (hollow bore) for general industrial applications.
- 30.24/1 reduction — balanced mid-ratio combining torque gain with practical output speed for general conveying and material handling
- Input: PAM 28/250 flange — direct mount for IEC 100/112B5 (3–4 kW)
- Hollow-bore output for shaft-mounted installation on the driven machine — removes the need for a separate coupling and reduces drive-train length
- Bevel-helical arrangement delivers ~94% efficiency per stage — substantially higher than worm designs at the same ratio, and runs cooler under continuous duty
- Cast-iron housing and case-hardened helical/bevel gear set for long service life in general industrial applications
- Made in Italy by SITI S.p.A.
$2,155.26
