SITB1416324C
MBH100C 163.72/1 PAM 24/200 BEVEL HELICAL G/BOX
SITB1416324C

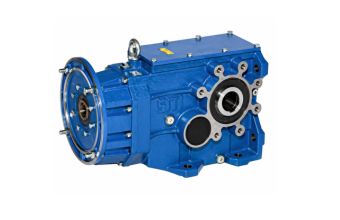

The MBH100C from SITI is a larger-frame bevel-helical gearmotor combining a spiral-bevel stage with a helical reduction stage, built on a 100 mm centre-distance housing and configured with coupled output (hollow bore) for heavy industrial applications.
- 163.72/1 reduction — very deep ratio producing very high output torque and very slow shaft speed for heavy positioning or winch/lift applications
- Input: PAM 24/200 flange — direct mount for IEC 90B5 (1.5–2.2 kW)
- Hollow-bore output for shaft-mounted installation on the driven machine — removes the need for a separate coupling and reduces drive-train length
- Bevel-helical arrangement delivers ~94% efficiency per stage — substantially higher than worm designs at the same ratio, and runs cooler under continuous duty
- Cast-iron housing and case-hardened helical/bevel gear set for long service life in heavy industrial applications
- Made in Italy by SITI S.p.A.
$2,741.28
