SITB1601338C
MBH125C 13.93/1 PAM 38/300 BEVEL HELICAL G/BOX
SITB1601338C

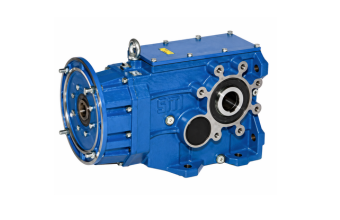

The MBH125C from SITI is a heavy-frame bevel-helical gearmotor combining a spiral-bevel stage with a helical reduction stage, built on a 125 mm centre-distance housing and configured with coupled output (hollow bore) for heavy-duty applications.
- 13.93/1 reduction — low ratio preserving output speed while gaining torque; useful for belt conveyors, fans and higher-speed slow-down tasks
- Input: PAM 38/300 flange — direct mount for IEC 132B5 (5.5–7.5 kW)
- Hollow-bore output for shaft-mounted installation on the driven machine — removes the need for a separate coupling and reduces drive-train length
- Bevel-helical arrangement delivers ~94% efficiency per stage — substantially higher than worm designs at the same ratio, and runs cooler under continuous duty
- Cast-iron housing and case-hardened helical/bevel gear set for long service life in heavy-duty applications
- Made in Italy by SITI S.p.A.
$4,950.00
